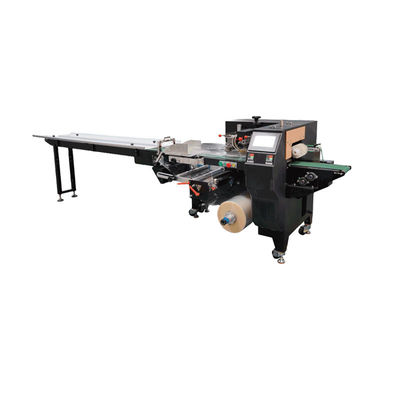

HFFS Horizontal Flow Wrapping Machine 30-150 Bags/Min 220V 50HZ

MOQ:	1
Harga:	1 -10pcs, USD8500 / pc
kemasan standar:	Kemasan Standar Internasional untuk Pengiriman
Periode pengiriman:	20
Cara Pembayaran:	L/C, T/T, Western Union
Kapasitas pasokan:	300 set per tahun

Informasi Detail

Deskripsi Produk

Informasi Rinci

Tempat asal

Shanghai

Nama merek

Waylead

Sertifikasi

Nomor model

WZ-220

Panjang paket:

120-300 mm

Lebar paket:

35-80 mm

Kecepatan pengemasan:

30-150 tas/mnt

Jenis pengepakan film:

PP 、 PVC 、 PS 、 EVA 、 PET 、 PVDC+PVC 、 OPP+(Rekombinasi) CPP

Jenis catu daya:

220V 50Hz

Kekuatan Umum:

(L) 4020mm (W) 800mm (H) 1450mm

Berat:

3.1 kw

Dimensi:

4000x 930x1370 mm

Menyoroti:

HFFS horizontal flow wrapping machine

flow wrapping machine 30-150 bags/min

220V flow wrapping machine with warranty

Deskripsi Produk

Frequency Conversion Control Flow Wrapping Machine Moisture-Proof Sealing Packaging

HFFS Horizontal Flow Wrapping Machine

Working Principle and Operational Technical Guide

Fundamental Operating Principle

Film Transport Mechanism

Upon unwinding the roll film through the guide roller, the servo drive system precisely moves it, guaranteeing a tension control precision of ±0.5.

A photoelectric sensor monitors the color mark, automatically correcting any stretching errors in the printed material with an accuracy of ±0.3mm.

Formation and Filling Stage

The former molds the film to form a cylindrical structure for housing the product.

A synchronized conveyor gently ushers the product into the film cylinder with a speed deviation of under 1%.

Heat Sealing and Cutting Unit

The vertical sealing device maintains a consistent temperature (adjustable within the range of 150 to 200℃) to ensure a sealing strength of ≥4N/15mm.

The horizontal sealing cutter is equipped with dual temperature and pressure adjustments, facilitating simultaneous cutting and end sealing.

Technical Specifications

Model	WZ-220(single jaw)	WZ-220(double jaws)	WZ-220(triple jaws)
Package Length	120-300 mm	60~200 mm	45~100mm
Package Width	35-80 mm	35-80 mm	35-70 mm
Package Height	5-35 mm	5-35 mm	5-30 mm
Packing Speed	30-150 bags/min	30-250 bags/min	30-450 bags/min
Package Height	90-220 mm	90-220 mm	90-220 mm
Packing Film type	PP,PVC,PS,EVA,PET,PVDC+PVC,OPP+(RECOMBINATION)CPP
Type of power supply	220V 50HZ	220v 50HZ	220v 50HZ
General power	3.1 KW	3.8 KW	4.5 KW
Weight	360 Kg	360 Kg	360 Kg
Dimension	4000x 930x1370 mm

Product Application

The HFFS horizontal flow wrapping machine serves diverse industries with its versatile packaging capabilities:

Food packaging: Candies, biscuits, chocolates, pastries, frozen foods and quick-frozen foods
Medical product packaging: Medicines, health products, medical devices and medical consumables
Cosmetic packaging: Facial masks, lotions, shampoos, shower gels and other cosmetic products
Daily necessities packaging: Detergents, shampoos, shower gels, soaps, and personal care products
Agricultural product packaging: Seeds, fertilizers, pesticides with moisture-proof protection
Electronic product packaging: Electronic components, accessories and small electronic devices

Product Advantages

Productivity Enhancement: High-speed packaging capability meets high-volume manufacturing demands
Versatility: Adjustable packaging solutions for products of various shapes and sizes
Aesthetic Packaging: Delivers tidy and visually appealing packaging results
Freshness Preservation: Flow wrapping technique maintains product quality and extends shelf life
Resource Efficiency: Optimizes material utilization, reducing waste and packaging costs
User-Centric Interface: Intuitive controls simplify operation and maintenance
Automation Integration: Streamlines operations, reduces manual involvement and ensures consistency

Selection Considerations

When selecting an HFFS wrapping machine, evaluate these key factors:

Product Characteristics: Ensure compatibility with your specific product type
Production Capacity: Match machine capabilities with your output requirements
Packaging Dimensions: Verify adjustable range meets your packaging size needs
Automation Level: Consider the balance between automation features and cost
Brand Reputation and Quality: Research manufacturer reliability and machine durability
Budget Considerations: Balance initial investment with long-term operational benefits

Our Packaging Machine Range

VFFS machines: Granule, powder, and liquid packing machines
Flow wrapping machines: Up paper, down paper, four side sealing flow, cookie/cake/popsicle packing machines
Heat Shrink Packaging Machine
Pouch packing machines: Granule, powder, liquid doypack machines, rotary and horizontal premade pouch machines
Automatic packaging line solutions
Supporting equipment: Weight inspection, metal detection, carton packing/sealing, coding, and palletizing systems

Our machines package various foods including nuts, dried fruits, bakery products, candies, frozen snacks, chocolate, chips, noodles, and more.

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer, we provide quality products at factory price, welcome to visit us!

Q2: What quality guarantee or warranty do you provide?

A2: We provide 3-year warranty and lifetime technical support.

Q3: When can I get the machine after payment?

A3: Delivery time depends on the specific machine model ordered.

Q4: How do you provide technical support?

A4: 24/7 support via phone, email or online platforms; installation guides/videos; overseas engineer services available.

Q5: How does your after-sales service work?

A5: Machines are pre-adjusted before shipment; free factory training available; lifetime technical support provided.

Q6: How about spare parts?

A6: We provide a spare parts list with each machine.

Q7: Can you help with custom design requirements?

A7: Yes, our experienced engineers can create customized solutions.

Q8: Can you analyze and design machines for new products?

A8: Yes, our technical department can analyze, design and test new products.

Q9: What is your order process?

A9: 30% deposit → production → testing → balance payment → shipment.

Q10: Can you send product catalog and price list?

A10: Electronic catalog available; specific pricing available upon request.

Q11: Can I visit your factory?

A11: Yes, our factory address: Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China
