Doypack Stand-up Pouch Packing Machine | Retail Ready
| MOQ: | 1 |
| Harga: | Negotiations |
| kemasan standar: | Kemasan standar internasional untuk pengiriman |
| Periode pengiriman: | 30 hari |
| Cara Pembayaran: | L/C,T/T,Western Union |
| Kapasitas pasokan: | 300 set per tahun |
Informasi Rinci
Tempat asal
shanghai
Nama merek
Waylead
Sertifikasi
/
Nomor model
WG-250
Kecepatan Pengepakan:
≦70 kantong/menit
Ukuran tas:
Panjang: ≦400mm lebar: 130-260mm
Bahan Film:
Tas datar, kantong stand-up, tas ritsleting, kantong film komposit, dan jenis lainnya.
Catu daya:
380V
Konsumsi Udara:
5-7kg/cm2; 0,4m3/menit
Tipe daya:
Listrik
Konsumsi Daya:
8 kW
Bahan:
Baja Tanpa Tiang
Kisaran kemasan:
Butiran Bubuk Cair
Menyoroti:
Doypack stand-up pouch packing machine
,Retail-ready Doypack packaging machine
,Stand-up pouch filling machine
Deskripsi Produk
Doypack Stand-up Pouch Packing Machine | Retail Ready

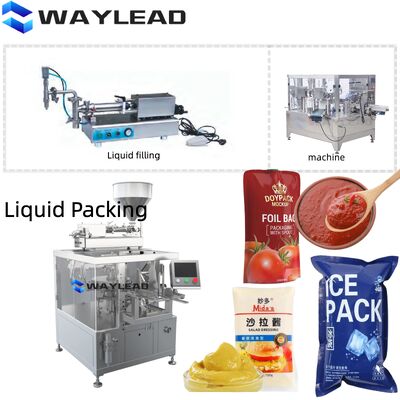

On a crowded retail shelf, a bag that stands up gets noticed. This Doypack stand‑up pouch packing machine creates stable, bottom‑gusseted pouches that stay upright from filling to store shelf. The machine takes pre‑made flat pouches, opens them, forms the bottom gusset, fills the product, and heat‑seals the top — all in one continuous cycle.
Retail‑ready packaging demands more than just good looks. It requires consistent seal integrity, accurate fill weights, and the ability to run at production speeds. This packer delivers 30 to 70 bags per minute, depending on product type and bag size. It handles liquid, paste, powder, and granular products equally well. Common applications include baby food puree, protein powder, liquid detergent, and snack mixes.
The bottom gusset formation is fully servo‑controlled, allowing precise control over the bag’s standing stability. An optional gas flush system extends shelf life by removing oxygen before sealing. For brands transitioning from cans or glass jars to flexible packaging, this machine offers a lower‑cost, lighter‑weight alternative that appeals to modern consumers.
Technical Specifications
| Specification | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700×1140×1470 mm | 1850×1250×1520 mm | 2100×1500×1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessities
Particles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials
Powders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materials
Liquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergents
Sauces
Tomato sauce, peanut butter, jam, chili sauce, bean paste
Other Materials
Various other products suitable for bagging
Key Features & Advantages
GMP Compliance & CE Certification
Dual authoritative certifications meet stringent quality and safety requirements for pharmaceutical, food, and healthcare sectors. Streamlines global market access and eliminates international trade barriers while safeguarding product quality and consumer health.
Full Servo Control System
Ultra-reliable, high-speed precision operation with reduced equipment failure rates and unplanned downtime. Adapts flexibly to variable packaging rhythms and fulfills high-throughput production demands with pinpoint accuracy in material dosing, zipper doypack forming, and heat sealing.
Intelligent Empty Bag Tracking
Real-time detection of bag presence with instant interlock control to prevent empty bag sealing. Reduces packaging material waste, slashes manual sorting labor, lowers production costs, and enhances finished product purity.
8-Station Integrated Structure
Seamless connection of multiple packaging processes governed by programmable PLC system. Features 6 user-friendly flat touch screens and intuitive HMI interface for hassle-free parameter setting, real-time production monitoring, and quick troubleshooting. Lowers operator training threshold and guarantees long-term stable production.
Complete Packaging Solutions
Our comprehensive packaging range includes VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
